FEATURES
APPLICATIONS
SPECIFICATIONS
|
PARAMETERS |
UNIT |
VALUE |
|
|
Channel Number |
ch |
4 |
8 |
|
Center Wavelength, λc |
nm |
1270,1290…1570, 1590, 1610 or 1271,1291…,1571, 1591, 1611 |
|
|
Channel Passband |
nm |
λc±6.5 |
|
|
Insertion Loss |
dB |
≤0.9 |
≤1.5 |
|
Ajacent channel Isolation |
dB |
≥30 |
|
|
Non-adjacent channel Isolation |
dB |
≥45 |
|
|
Polarization Dependent Loss |
dB |
≤0.1 |
|
|
Ripple in Channel Passband |
dB |
≤0.3 |
|
|
Polarization Mode Dispersion |
ps |
≤0.1 |
|
|
Return Loss |
dB |
≥45 |
|
|
Directivity |
dB |
≥50 |
|
|
Maximum Optical Power |
mw |
300 |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
Fiber Type |
-- |
SMF-28e or customer specified |
|
|
Package Dimension |
mm |

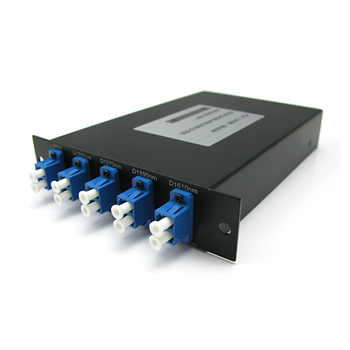

Plastic Box: 100×80×10 LGX Box: 160×129×29 19’’ Rack Mount: 485×230×44 |
|
Note: All the data above does not include connectors.
ORDER INFORMATION
ORDER CODE example: COADM-8-47-61-44-9-10-1-1-2
CWDM OADM with 8 channel, start wavelength 1470nm, end wavelength 1610nm, Add/Drop 4×4, fiber type 900μm loose tube, fiber length1.0m, input and output connector FC/UPC, package box is plastic box.
COADM
X
X
X
X
X
X
X
X
X
Code
Channel No.
Start Wavelength
End Wavelength
Add/Drop
Fiber Type
Fiber Length
Input Connector
Output Connector
Package Box
4=4ch
8=8ch
27=1270
…
57=1570
59=1590
29=1290
…
59=1590
61=1610
44=4×4
88=8×8
B=250μm
bare fiber
9=900μm loose tube
10=1.0m
15=1.5m
0=None
1=FC/UPC
2=FC/APC
3=SC/UPC
4=SC/APC
5=LC/UPC
6=LC/APC
7=ST/UPC
8=ST/APC
X=customized
0=None
1=FC/UPC
2=FC/APC
3=SC/UPC
4=SC/APC
5=LC/UPC
6=LC/APC
7=ST/UPC
8=ST/APC
X=customized
2=Plastic
Box
3=LGX
box
4=19’’ Rack Mount
X=Customized package
 |
 |
 |
