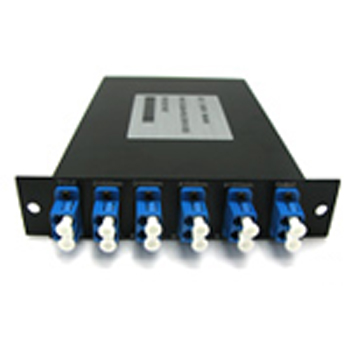

FEATURES
APPLICATIONS
SPECIFICATIONS
|
PARAMETERS |
UNIT |
VALUE |
|
|
Channel Number |
ch |
4 |
8 |
|
Type |
-- |
100G/200G |
|
|
Operating Wavelength |
nm |
1520~1570 |
|
|
Center Wavelength, λc |
nm |
1529.55~1560.61 |
|
|
Channel Passband(100G) |
nm |
λc±0.11 |
|
|
Channel Passband(200G) |
nm |
λc±0.25 |
|
|
Insertion Loss |
dB |
≤2.0 |
≤3.0 |
|
Ajacent channel Isolation |
dB |
≥30 |
|
|
Non-adjacent channel Isolation |
dB |
≥45 |
|
|
Polarization Dependent Loss |
dB |
≤0.2 |
|
|
Ripple in Channel Passband |
dB |
≤0.5 |
|
|
Polarization Mode Dispersion |
ps |
≤0.2 |
|
|
Return Loss |
dB |
≥45 |
|
|
Directivity |
dB |
≥50 |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
Fiber Type |
-- |
SMF-28e or customer specified |
|
|
Package Dimension |
mm |
Plastic Box: 100×80×10 LGX Box: 160×129×29 19’’ Rack Mount: 485×230×44 |
|
Note: All the data above does not include connectors.
ORDER INFORMATION
ORDER CODE example: DOADM-1-8-C21-H28-44-9-10-1-1-2
DWDM OADM with 8 channel and spacing 100GHz, start wavelength ITU C21, end wavelength ITU H28, Add/Drop 44=4×4, fiber type 900μm loose tube, fiber length1.0m, input and output connector FC/UPC, package box is plastic box.
|
DOADM |
X |
X |
X |
X |
X |
X |
X |
X |
X |
X |
|
Code |
Spacing |
Channel No. |
Start Wavelength |
End Wavelength |
Add/Drop |
Fiber Type |
Fiber Length |
Input Connector |
Output Connector |
Package Box |
|
|
1=100G 2=200G |
4=4ch 8=8ch |
C21=ITU C21 H21=ITU H21 C22=ITU C22 …… |
H21=ITU H21 C22=ITU C22 H22=ITU H22 …… |
44=4×4 88=8×8 |
B=250μm bare fiber 9=900μm loose tube |
10=1.0m 15=1.5m |
0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC 7=ST/UPC 8=ST/APC X=customized |
0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC 7=ST/UPC 8=ST/APC X=customized |
2=Plastic Box 3=LGX box 4=19’’ Rack Mount X=Customized package |
 |
 |
 |
