Single Mode Patch Cords

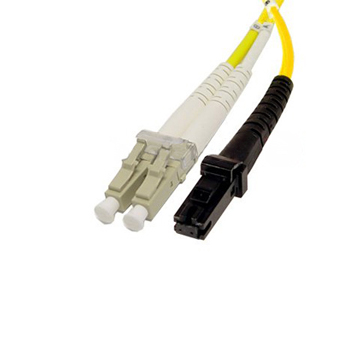

LC-MTRJ Duplex Single Mode Patch Cords

Model:

Description: TING ESUN offers a complete selection of LC-MTRJ fiber optic patch cords, these fiber optic patch cords include single mode and multimode types, simplex,duplex and multi fiber versions. End face is available for PC, UPC or APC. Patch Cord jacket material can be PVC and LSZH. All Patch Cords are RoHS compliant. We supply related standard and customized fiber optic patch cords with competitive price and prompt delivery.

FEATURES

Low insertion loss and high return loss
Telcordia, IEC, TIA/EIA standard compliant
RoHS compliant
100% optical performance inspection and end face geometric
Varieties of cable assemblies
Suitable for high-speed, high-capacity optical fiber transmission system
Good packing, competitive prices and very fast delivery

APPLICATIONS

Telecom, datacom
Optical fiber communications system
Optical fiber access networks
Cable TV(CATV)
Optical fiber test equipements
Local area networks(LANs)

OPTIONS

PC, UPC, APC polish types
FC, SC, ST, LC, MU, MT-RJ, E2000, SMA connector
Simplex, duplex or multi fiber for standard or customized
Provide SM/MM patch cord and pigtails
Cable Diameter: 0.9mm,2.0mm,3.0mm
Length/Type: according to customers' demands
Jacket types: PVC, LSZH and PE
Custom fiber optic cable lengths and jacket colors
Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode

SPECIFICATIONS

PARAMETERS	Unit	SM		MM
Fiber Diameter	μm	9/125		50/125	62.5/125
Endface Type	--	PC	UPC	PC
Insertion Loss	dB	≤0.2	≤0.15	≤0.1
Return Loss	dB	≥45	≥50	≥30
Insert-pull Test	dB	≤0.2	≤0.3	≤0.15
Interchangeability	dB	≤0.1	≤0.15	≤0.1
Cable Diameter	mm	0.9&1.6&1.8&2.0&2.4&3.0
Operating Temperature	°c	-40~+75
Storage Temperature	°c	-40~+80

ORDER INFORMATION

ORDER CODE example: PC-EEAD1YP01M

LC/UPC to LC/UPC Fiber Optic Patch Cords, Single mode 9/125μm Duplex with a 0.9mmYellow PVC jacket 1 meters long.

PC

X

Code

Connector A

Connector B

Fiber Mode

Fiber Number

Cable Diameter

Jacket Color

Jacket Type

Cable Length

Unit

E=LC/UPC

F=LC/APC

H=SC/UPC

I=SC/APC

K=FC/UPC

L=FC/APC

N=ST/UPC

O=SC/APC

Q=E2000/UPC

R=E2000/APC

S=MTRJ

T=MU

U=SMA

E=LC/UPC

F=LC/APC

H=SC/UPC

I=SC/APC

K=FC/UPC

L=FC/APC

N=ST/UPC

O=SC/APC

Q=E2000/UPC

R=E2000/APC

S=MTRJ

T=MU

U=SMA

A=9/125μm

Single mode

B=62.5/125μm

Multimode

C=50/125μm

OM3

D=50/125μm OM4

S=Simplex

D=Duplex

1=0.9mm

2=2mm

3=3mm

Y=Yellow

O=Orange

A=Aqua

L=Blue

G=Green

N=Brown

S=Slate

W=White

R=Red

B=Black

U=Purple

P=Pink

P=PVC

L= LSZH

N=None

01=1m

02=2m

03=3m

……

09=9m

10=10m

M=Meters

F=Feet

I=Inches

C=Centimeters
