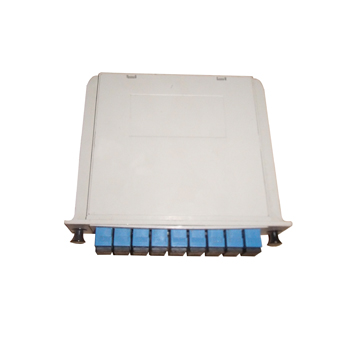

LGX Module PLC Splitter

Model:

Description: Planar Lightwave Circuit (PLC) Splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute or combine optical signals. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

TING ESUN's 1xN PLC Splitter and 2xN PLC Splitter features guaranteed performance specification and high reliability that meet Telcordia requirements and is tailored for different applications and markets.

FEATURES

Various coupling ratios, including 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1
Multiple packaging options
Fan-out type available
PC, UPC, and APC connector polish type
Available with FC, SC, ST, LC, MU terminations or customer specified
Compact size
Low Insertion loss
Low polarization dependent loss (PDL)
Good channel-to-channel uniformity
Wide operating Wavelength: from 1260nm to 1650nm
Wide operating Temperature: From-40℃ to 85℃
High reliability and stability

BENEFITS

Versatile - can be used with multiple fiber types for a variety of applications
Port configuration options creates ideal option for specific requirements
Small size reduces physical space requirements
Highly definable coupling ratios enable product to serve precise need
Packaging designed to deliver on size, shape, or ruggedness requirements defined by the particular project
Connector and polish options allow seamless integration into existing systems

Ting Esun Splitters are available in a variety of styles, sizes, port configurations, split values, and wavelength specifications allowing a high degree of flexibility in tailoring the product to suit your precise requirements and application.

APPLICATIONS

Fiber to the point (FTTX)
Fiber to the home (FTTH)
Passive optical networks(PON, GPON, EPON)
Local area networks (LAN)
Cable television (CATV) system
Central Office
Test equipment

SPECIFICATIONS

1xN PLC Splitter Specifications

PARAMETERS	UNIT	VALUE
Port Configuration	--	1x2	1x4	1x8	1x16	1x32	1x64
Fiber Type	--	SMF-28e or customer specified
Connector Type	--	Customer specified
Operating Wavelength	nm	1260~1650
Insertion Loss, Max	dB	4.6	8.0	11.3	14.3	17.5	21.6
Loss Uniformity	dB	0.7	0.9	1.1	1.5	1.8	2.3
Return Loss, Min	dB	55	55	55	55	55	55
Polarization Dependent Loss, Max	dB	0.2	0.2	0.3	0.3	0.3	0.4
Directivity, Min	dB	55	55	55	55	55	55
Wavelength Dependent Loss	dB	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85℃)	dB	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature	℃	-40~85
Storage Temperature	℃	-40~85
Package Size (L x W x H)	mm	19” 1U 2U Rack-Mount Box, LGX Box

Note: All the data above does not include connectors.

Add an additional 0.2dB loss per connector.

2xN PLC Splitter Specifications

PARAMETERS	UNIT	VALUE
Port Configuration	--	1x2	1x4	1x8	1x16	1x32	1x64
Fiber Type	--	SMF-28e or customer specified
Connector Type	--	Customer specified
Operating Wavelength	nm	1260~1650
Insertion Loss, Max	dB	4.8	8.4	12.1	15.1	18.3	22.5
Loss Uniformity	dB	0.9	1.5	1.8	2.1	2.3	2.5
Return Loss, Min	dB	55	55	55	55	55	55
Polarization Dependent Loss, Max	dB	0.2	0.2	0.4	0.4	0.4	0.5
Directivity, Min	dB	55	55	55	55	55	55
Wavelength Dependent Loss	dB	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability (-40~85℃)	dB	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature	℃	-40~85
Storage Temperature	℃	-40~85
Package Size (L x W x H)	mm	19” 1U 2U Rack-Mount Box, LGX Box

Note: All the data above does not include connectors.

Add an additional 0.2dB loss per connector.

ORDER INFORMATION

ORDER CODE example: LGPS-102-RM-1-1

1x2 LGX Module PLC Splitter, Input Connector is FC/UPC and Output Conncetor is FC/UPC.

LGPS	X	X	X	X
Code	Port Configuration	Box Type	Input Connector	Output Connector
	102=1x2	LG= LGX Box, metal	0=None	0=None
	104=1x4	RM=19”1U Rack mount	1=FC/UPC	1=FC/UPC
	108=1x8		2=FC/APC	2=FC/APC
	116=1x16		3=SC/UPC	3=SC/UPC
	132=1x32		4=SC/APC	4=SC/APC
	164=1x64		5=LC/UPC	5=LC/UPC
	202=2x2		6=LC/APC	6=LC/APC
	204=2x4		7=ST/UPC	7=ST/UPC
	208=2x8		8=ST/APC	8=ST/APC
	216=2x16		X=customized	X=customized
	232=2x32
	264=2x64
