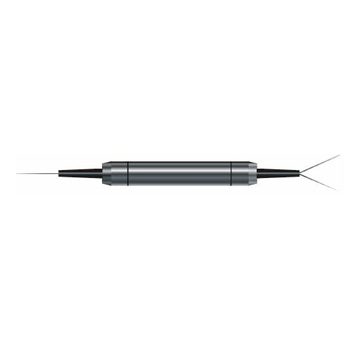

FEATURES
APPLICATIONS
SPECIFICATIONS
|
PARAMETERS |
UNIT |
VALUE |
|
|
Type |
-- |
Type A |
Type B |
|
Configuration |
-- |
3 Port |
|
|
Operating Wavelength |
nm |
1310 or 1550 |
|
|
Bandwidth |
dB |
30 |
20 |
|
Peak Isolation |
dB |
46 |
30 |
|
Isolation(@23°C) |
dB |
≥40 |
≥20 |
|
Insertion Loss(@23°C) |
dB |
≤0.9(Typ.0.7) |
≤0.8(Typ.0.6) |
|
Return Loss |
dB |
≥50 |
|
|
Maximum Optical Power |
mw |
300 |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
Fiber Type |
-- |
Panda Fiber |
|
|
Dimension |
mm |
5.5(Ф)X35(L) |
|
Note: All the data above does not include connectors.
Specifications may change without notice.
ORDER INFORMATION
ORDER CODE example: PMIOC-3-13-9-10-1-1
Polarization insensitive optical circulator with 3 port, wavelength 1310nm, fiber type 900μm loose tube, fiber length1.0m, input and output connector FC/UPC.
|
PMIOC |
X |
X |
X |
X |
X |
X |
|
Code |
Type |
Wavelength |
Fiber Type |
Fiber Length |
Input Connector |
Output Connector |
|
|
3=3 Port |
13=1310nm 15=1550nm
|
B=250μm bare fiber 9=900μm loose tube |
10=1.0m 15=1.5m |
0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC 7=ST/UPC 8=ST/APC X=customized |
0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC 7=ST/UPC 8=ST/APC X=customized |
 |
 |
 |
