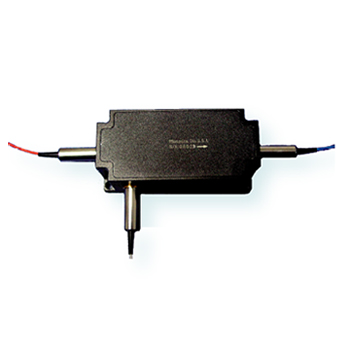

980nm PM Circulator
980nm PM Circulator
Model:
Description: TING ESUN's polarization maintaining optical isolator provides High Isolation, Low Insertion loss, Low PDL, High Stability and High Reliability. It can be used for Fiber optic Amplifiers, Pump Laser Source, Fiber optic Sensor, Test and Measurement Instrumentation. All TING ESUN products are Telcordia qualification tested.

FEATURES

  • High Isolation
  • Low Insertion loss
  • Low PDL
  • High Stability and High Reliability
  • Cost Effective


APPLICATIONS

  • Fiber optic Amplifiers
  • Pump Laser Source
  • Fiber optic Sensor
  • Test and Measurement Instrumentation


SPECIFICATIONS

PARAMETERS

UNIT

VALUE

Operating Wavelength

nm

980

Bandwidth

dB

±10

Peak Isolation

dB

25

Isolation(@23°C)

dB

≥20

Insertion Loss(@23°C)

dB

≤1.8(Typ.1.3)

Extinction Ratio

dB

≤20(Typ.25)







Return Loss

dB

50

Maximum Optical Power

mw

400

Operating Temperature

0~+60

Storage Temperature

-40~+85

Fiber Type

--

PM 980

Dimension

mm

62.6(L)X28(W) X27(H)

Note: All the data above does not include connectors.

Specifications may change without notice.



ORDER INFORMATION

ORDER CODE example: PMOC-98-9- 10-2-1-1

PM Optical Circulator with wavelength 980nm, fiber type 900μm loose tube, fiber length1.0m, fiber mode PM980, input and output connector FC/UPC.


PMOC

X

X

X

X

X

X

Code

Wavelength

Fiber Type

Fiber Length

Fiber Mode

Input Connector

Output Connector



98=980 nm



B=250μm bare fiber

9=900μm loose tube

10=1.0m

15=1.5m

2=PM 980



0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=LC/UPC

6=LC/APC

7=ST/UPC

8=ST/APC

X=customized

0=None

1=FC/UPC

2=FC/APC

3=SC/UPC

4=SC/APC

5=LC/UPC

6=LC/APC

7=ST/UPC

8=ST/APC

X=customized
