10Gb OM3 Multimode Patch Cords

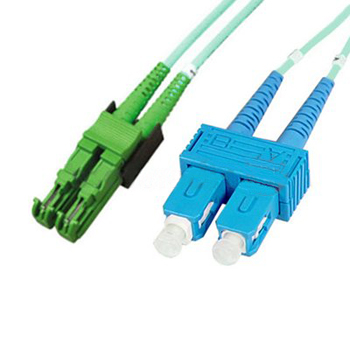

SC-E2000 Duplex 10G OM3 Patch Cords
SC-E2000 Duplex 10G OM3 Patch Cords
Model:
Description: TING ESUN offers a complete selection of SC-E2000 fiber optic patch cords, these fiber optic patch cords include single mode and multimode types, simplex,duplex and multi fiber versions. End face is available for PC, UPC or APC. Patch Cord jacket material can be PVC and LSZH. All Patch Cords are RoHS compliant. We supply related standard and customized fiber optic patch cords with competitive price and prompt delivery.

FEATURES

  • Low insertion loss and high return loss
  • Telcordia, IEC, TIA/EIA standard compliant
  • RoHS compliant
  • 100% optical performance inspection and end face geometric
  • Varieties of cable assemblies
  • Suitable for high-speed, high-capacity optical fiber transmission system
  • Good packing, competitive prices and very fast delivery


APPLICATIONS

  • Telecom, datacom
  • Optical fiber communications system
  • Optical fiber access networks
  • Cable TV(CATV)
  • Optical fiber test equipements
  • Local area networks(LANs)


OPTIONS

  • PC, UPC, APC polish types
  • FC, SC, ST, LC, MU, MT-RJ, E2000, SMA connector
  • Simplex, duplex or multi fiber for standard or customized
  • Provide SM/MM patch cord and pigtails
  • Cable Diameter: 0.9mm,2.0mm,3.0mm
  • Length/Type: according  to customers' demands
  • Jacket types: PVC, LSZH and PE
  • Custom fiber optic cable lengths and jacket colors
  • Various fiber types and wavelengths, typical 9/125 single mode, 50/125 multimode and 62.5/125 multimode


SPECIFICATIONS


PARAMETERS

Unit

SM

MM

Fiber Diameter

μm

9/125

50/125

62.5/125

Endface Type

--

PC

UPC

APC

PC

Insertion Loss

dB

≤0.2

≤0.15

≤0.2

≤0.1

Return Loss

dB

≥45

≥50

≥65

≥30

Insert-pull Test

dB

≤0.2

≤0.3

≤0.15

Interchangeability

dB

≤0.1

≤0.15

≤0.1

Cable Diameter

mm

0.9&1.6&1.8&2.0&2.4&3.0

Operating Temperature

°c

-40~+75

Storage Temperature

°c

-40~+80


ORDER INFORMATION

ORDER CODE example: PC-EEAD1YP01M

LC/UPC to LC/UPC Fiber Optic Patch Cords, Single mode 9/125μm Duplex with a 0.9mmYellow PVC jacket 1 meters long.


PC

X

X

X

X

X

X

X

X

X

Code

Connector A

Connector B

Fiber Mode

Fiber Number

Cable Diameter

Jacket Color

Jacket Type

Cable Length

Unit



E=LC/UPC

F=LC/APC

H=SC/UPC

I=SC/APC

K=FC/UPC

L=FC/APC

N=ST/UPC

O=SC/APC

Q=E2000/UPC

R=E2000/APC

S=MTRJ

T=MU

U=SMA



E=LC/UPC

F=LC/APC

H=SC/UPC

I=SC/APC

K=FC/UPC

L=FC/APC

N=ST/UPC

O=SC/APC

Q=E2000/UPC

R=E2000/APC

S=MTRJ

T=MU

U=SMA



A=9/125μm

Single mode

B=62.5/125μm

Multimode

C=50/125μm

OM3

D=50/125μm OM4



S=Simplex

D=Duplex



1=0.9mm

2=2mm

3=3mm



Y=Yellow

O=Orange

A=Aqua

L=Blue

G=Green

N=Brown

S=Slate

W=White

R=Red

B=Black

U=Purple

P=Pink



P=PVC

L= LSZH

N=None



01=1m

02=2m

03=3m

……

09=9m

10=10m

M=Meters

F=Feet

I=Inches

C=Centimeters
