MPO Fan-out Patch Cords

10G  OM4 MPO Fan-out Patch Cords
10G OM4 MPO Fan-out Patch Cords
Model:

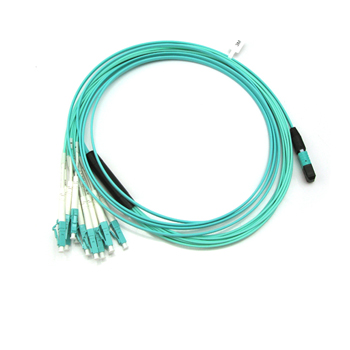

Description: MPO Fan-out Patch Cords, also called MPO Breakout or Harnesses Cables, are designed for high density applications with require high performance and speedy installation. These cables work from fiber optic patch cord backbone assemblies to fiber rack system, and the fiber optic patch cords are high density backbone patch cords. The patch cord assemblies are terminated with MPO connector on one end and strands LC, FC, SC, ST connectors on other end to meet a variety of fiber optic patch cord requirements.
TING ESUN supply 4, 8, 12 and 24 fiber core configuration MPO with SM(OS1, OS2) and MM(OM1, OM2, OM3 or OM4) fiber mode. We also provide Customized Service such as connector types and cable lengths to meet specific installation environment.

FEATURES


  • Low Insertion Loss
  • Compact Package
  • High Reliability & Stability
  • Cost Effective
  • Precision Multifiber MT Ferrule
  • Push-pull latching
  •  Bare & Flat Jacket Ribbon and Round cable
  • Male(with guide pin) and Female(without guide pin) connector type
  • IEC61754-7, Telcordia GR-1435-CORE compliant




APPLICATIONS


  • Access Network
  • Telecom/CATV Systems
  • Optical Fiber Amplifier
  • Fiber Optic Sensor Instrumentation
  • FTTx




SPECIFICATION



PARAMETERS

UNIT

VALUE

MPO Connector

--

SM Standard

SM Low Loss

MM Standard

MM Low Loss

Insertion Loss

Typical

dB

0.35

0.20

0.35

0.20



Maximun

dB

0.75

0.35

0.60

0.35

Return Loss

dB

≥60 for APC (8 Angle Polish)

≥20 for PC

dB

≥50 for PC

--

Durability

dB

<0.3 for 500times insertion

Operating Temperature

°C

-40 ~75℃

Ferrule Type Available

--

4,8,12,,24



ORDER INFORMATION

ORDER CODE example: MPO-F-P-4-F-P-OS1-9-1-RJ

MPO with female connector1, pc end face1, female connector2, pc end face2. Fiber count is 4. Fiber mode is OS1. Cable diameter is0.9mmand length1mm. Cable type is jacket ribbon cable.



MPO

X

X

X

X

X

X

X

X

X

Code

Connector Type

 1#

End Face 1#

Fiber Count

Connector Type

2#

End Face 2#

Fiber Mode

Cable Diameter

Cable Length

Cable Type



F=MPO-Female

M=MPO-Male

P=PC

A=APC

4,8,12,24…

F=MPO-Female

M=MPO-Male

F=FC

S=SC

T=ST

L=LC

P=PC

A=APC

 SM:

OS1, OS2

MM:

OM1 , OM2 , OM3 , OM4

9=0.9mm

2=2mm

3=3mm

1=1m

2=2m

3=3m

……

RJ:Jacket Ribbon Cable

RB:Bare Ribbon Cable

RC:Round Cable
