MPO Fan-out Patch Cords

LC/SC/ST/FC MPO Fan-out Patch Cords

Model:

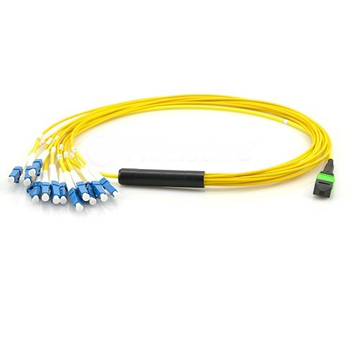

Description: MPO Fan-out Patch Cords, also called MPO Breakout or Harnesses Cables, are designed for high density applications with require high performance and speedy installation. These cables work from fiber optic patch cord backbone assemblies to fiber rack system, and the fiber optic patch cords are high density backbone patch cords. The patch cord assemblies are terminated with MPO connector on one end and strands LC, FC, SC, ST connectors on other end to meet a variety of fiber optic patch cord requirements.

TING ESUN supply 4, 8, 12 and 24 fiber core configuration MPO with SM(OS1, OS2) and MM(OM1, OM2, OM3 or OM4) fiber mode. We also provide Customized Service such as connector types and cable lengths to meet specific installation environment.

FEATURES

Low Insertion Loss
Compact Package
High Reliability & Stability
Cost Effective
Precision Multifiber MT Ferrule
Push-pull latching
Bare & Flat Jacket Ribbon and Round cable
Male(with guide pin) and Female(without guide pin) connector type
IEC61754-7, Telcordia GR-1435-CORE compliant

APPLICATIONS

Access Network
Telecom/CATV Systems
Optical Fiber Amplifier
Fiber Optic Sensor Instrumentation
FTTx

SPECIFICATION

PARAMETERS		UNIT	VALUE
MPO Connector		--	SM Standard	SM Low Loss	MM Standard	MM Low Loss
Insertion Loss	Typical	dB	0.35	0.20	0.35	0.20
	Maximun	dB	0.75	0.35	0.60	0.35
Return Loss		dB	≥60 for APC (8 Angle Polish)		≥20 for PC
		dB	≥50 for PC		--
Durability		dB	<0.3 for 500times insertion
Operating Temperature		°C	-40 ~75℃
Ferrule Type Available		--	4,8,12,,24

ORDER INFORMATION

ORDER CODE example: MPO-F-P-4-F-P-OS1-9-1-RJ

MPO with female connector1, pc end face1, female connector2, pc end face2. Fiber count is 4. Fiber mode is OS1. Cable diameter is0.9mmand length1mm. Cable type is jacket ribbon cable.

MPO

X

Code

Connector Type

1#

End Face 1#

Fiber Count

Connector Type

2#

End Face 2#

Fiber Mode

Cable Diameter

Cable Length

Cable Type

F=MPO-Female

M=MPO-Male

P=PC

A=APC

4,8,12,24…

F=MPO-Female

M=MPO-Male

F=FC

S=SC

T=ST

L=LC

P=PC

A=APC

SM:

OS1, OS2

MM:

OM1 , OM2 , OM3 , OM4

9=0.9mm

2=2mm

3=3mm

1=1m

2=2m

3=3m

……

RJ:Jacket Ribbon Cable

RB:Bare Ribbon Cable

RC:Round Cable
