MPO Trunk Patch Cords

Single Mode  MPO Trunk Patch Cords
Single Mode MPO Trunk Patch Cords
Model:

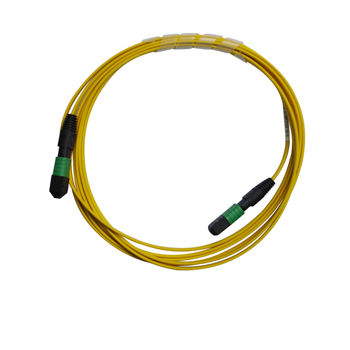

Description: MPO fiber optic patch cords are with MPO fiber optic connectors. They are several fiberglass connections in one such patch cord, Which offer up to 12 times the density of standard connectors, providing significant space and cost savings. MPO patch cords use Precision molded MT ferrules, together with metal guide pins and precise housings ensuring fiber alignment when mating.

TING ESUN supply 4, 8, 12 and 24 fiber core configuration MPO with SM(OS1, OS2) and MM(OM1, OM2, OM3 or OM4) fiber mode. Cable type are available for Jacket Ribbon Cable, Bare Ribbon Cable and Round Cable. End face are available for PC and APC polishing. MPO Connector housing are available in Green, Yellow, Beige and Aqua.Connectors are available for male and female.


FEATURES


  • Low Insertion Loss
  • Low Polarization Dependent Loss
  • Easy connection and disconnection
  • Fiber Options: OS1 /OS2/OM1/OM2/OM3
  • Polishing Options: PC/UPC/APC
  • Precision Multifiber MT Ferrule
  • Push-pull latching
  •  Bare & Flat Jacket Ribbon and Round cable
  • Male(with guide pin) and Female(without guide pin) connector type
  • IEC61754-7, Telcordia GR-1435-CORE compliant



APPLICATIONS


  • Access Network
  • Telecom/CATV Systems
  • FTTx




SPECIFICATION



PARAMETERS

UNIT

VALUE

MPO Connector

--

SM Standard

SM Low Loss

MM Standard

MM Low Loss

Insertion Loss

Typical

dB

0.35

0.20

0.35

0.20

Maximun

dB

0.75

0.35

0.60

0.35

Return Loss

dB

≥60 for APC (8 Angle Polish)

≥20 for PC

dB

≥50 for PC

--

Durability

dB

<0.2 for 200 times insertion

Operating Temperature

°C

-40 ~75℃

Ferrule Type Available

--

4,8,12,24



ORDER INFORMATION

ORDER CODE example: MPO-F-P-4-F-P-OS1-9-1-RJ

MPO with female connector1, pc end face1, female connector2, pc end face2. Fiber count is 4. Fiber mode is OS1. Cable diameter is 0.9mm and length1mm. Cable type is Jacket Ribbon Cable.



MPO

X

X

X

X

X

X

X

X

X

Code

Connector Type

 1#

End Face 1#

Fiber Count

Connector Type

2#

End Face 2#

Fiber Mode

Cable Diameter

Cable Length

Cable Type



F=MPO-Female

M=MPO-Male

P=PC

A=APC

4,8,12,24…

F=MPO-Female

M=MPO-Male

F=FC

S=SC

T=ST

L=LC

P=PC

A=APC

 SM:

OS1, OS2

MM:

OM1 , OM2 , OM3 , OM4

9=0.9mm

2=2mm

3=3mm

1=1m

2=2m

3=3m

RJ:Jacket Ribbon Cable

RB:Bare Ribbon Cable

RC:Round Cable
