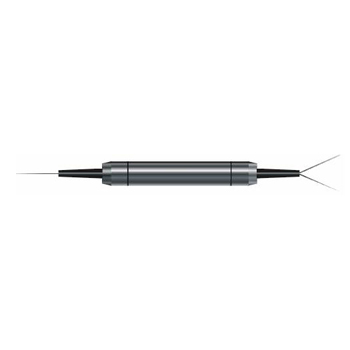

FEATURES
APPLICATIONS
SPECIFICATIONS
|
PARAMETERS |
UNIT |
VALUE |
|
Configuration |
-- |
3 Port |
|
Operating Wavelength |
nm |
1310±30 or 1550±30 |
|
Isolation(@23°C) |
dB |
≥30 |
|
Insertion Loss(@23°C) |
dB |
≤1.2 |
|
Return Loss |
dB |
≥40 |
|
Polarization Dependent Loss, PDL(@23°C) |
dB |
≤0.2 |
|
Polarization Mode Dispersion(PMD) |
ps |
≤0.05 |
|
Directivity |
dB |
≥40 |
|
Maximum Optical Power |
mw |
500 |
|
Operating Temperature |
℃ |
-5～+70 |
|
Storage Temperature |
℃ |
-40～+80 |
|
Fiber Mode |
-- |
62.5/125 or 50/125 |
|
Dimension |
mm |
5.5(Ф)X67(L) |
Note: All the data above does not include connectors.
Specifications may change without notice.
ORDER INFORMATION
ORDER CODE example: MPIOC-3 -13-9-1-10-1-1
Multimode Polarization insensitive optical circulator with 3 port, wavelength 1310nm, fiber type 900μm loose tube, fiber mode 62.5/125, fiber length1.0m, input and output connector FC/UPC.
|
MPIOC |
X |
X |
X |
X |
X |
X |
X |
|
Code |
Type |
Wavelength |
Fiber Type |
Fiber Mode |
Fiber Length |
Input Connector |
Output Connector |
|
|
3=3 Port |
13=1310nm 15=1550nm
|
B=250μm bare fiber 9=900μm loose tube |
1=62.5/125 2=50/125 |
10=1.0m 15=1.5m |
0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC 7=ST/UPC 8=ST/APC X=customized |
0=None 1=FC/UPC 2=FC/APC 3=SC/UPC 4=SC/APC 5=LC/UPC 6=LC/APC 7=ST/UPC 8=ST/APC X=customized |
 |
 |
 |
